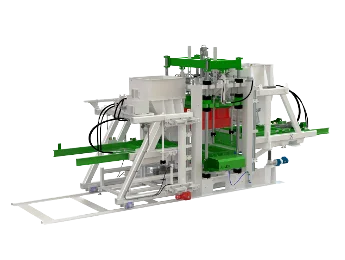

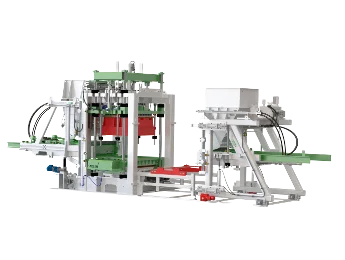

A860N ADLER vibrating press
An ergonomic and high capacity concrete block making machine
The block making machine ADLER A860N is designed to provide comfort and simplicity both in accessible settings from control desk and maintenance, favoring accesses to different parts of the machine.
Molding capacity of the A860N block making machine
| Model | Number of products | Production /8h | Molding surface | Molding height mini/maxi |
|---|---|---|---|---|
| A860N M1 | 10 blocks 20x20x50 cm (french) | 19 200 | 1170 x 1300 mm | 40 / 400 mm |
| A860N M2 | 18 blocks 20x20x40 cm (hollow) | 32 500 | 1340 x 1300 mm | 40 / 400 mm |
| A860N M1/M2 | 50 pavers 10x20x6 cm | 2 400 m² | 1170 or 1340 x 1300 mm | 40 / 400 mm |
| A860N M1/M2 | 6 kerbstones T2 | 8 100 ml | 1170 or 1340 x 1300 mm | 40 / 300 mm |
* production can vary, depending on the regularity of aggregates, concrete quality, machine settings and the handling type.
Pallets size
| Model | Front width | Length |
|---|---|---|
| A860N M1 | 1250 mm | 1300 mm |
| A860N M2 | 1400 mm | 1400 mm |
