U-FLEX : containers, pallets and cardboards unloader

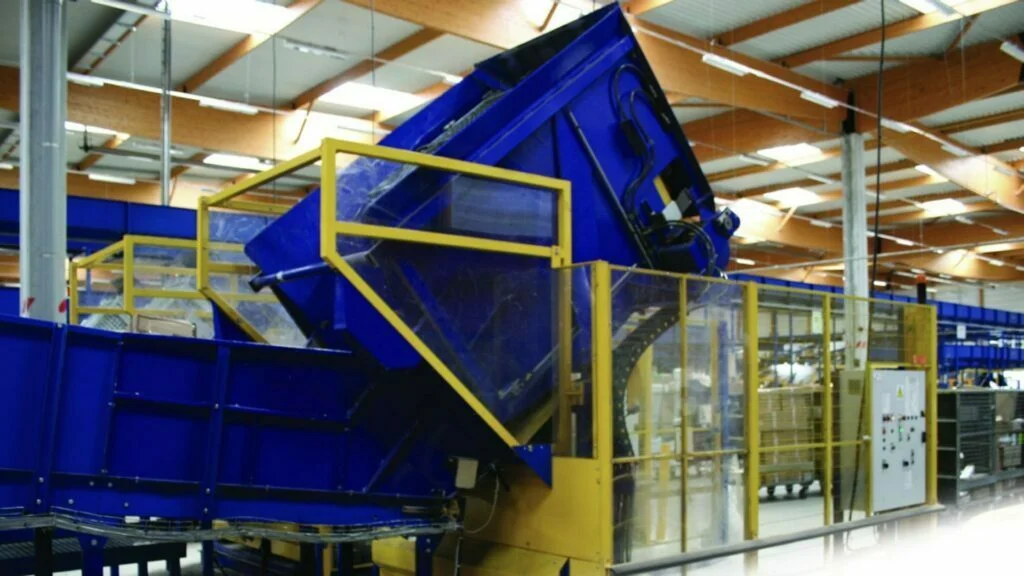

The U-FLEX tipper is a flexible parcel unloading solution for postal sorting centers which handles a wide variety of containers: steel, pallets, boxes... This flexible solution allows to tilt 1 container per minute.
A flexible parcel unloader
The smart and flexible U-FLEX is essential for multi-purpose logistics centers handling steel containers, stacked or wrapped paletts…
This versatile machine that allows you to empty almost any type of container: pallet, gaylord, rolling cage, boxes…

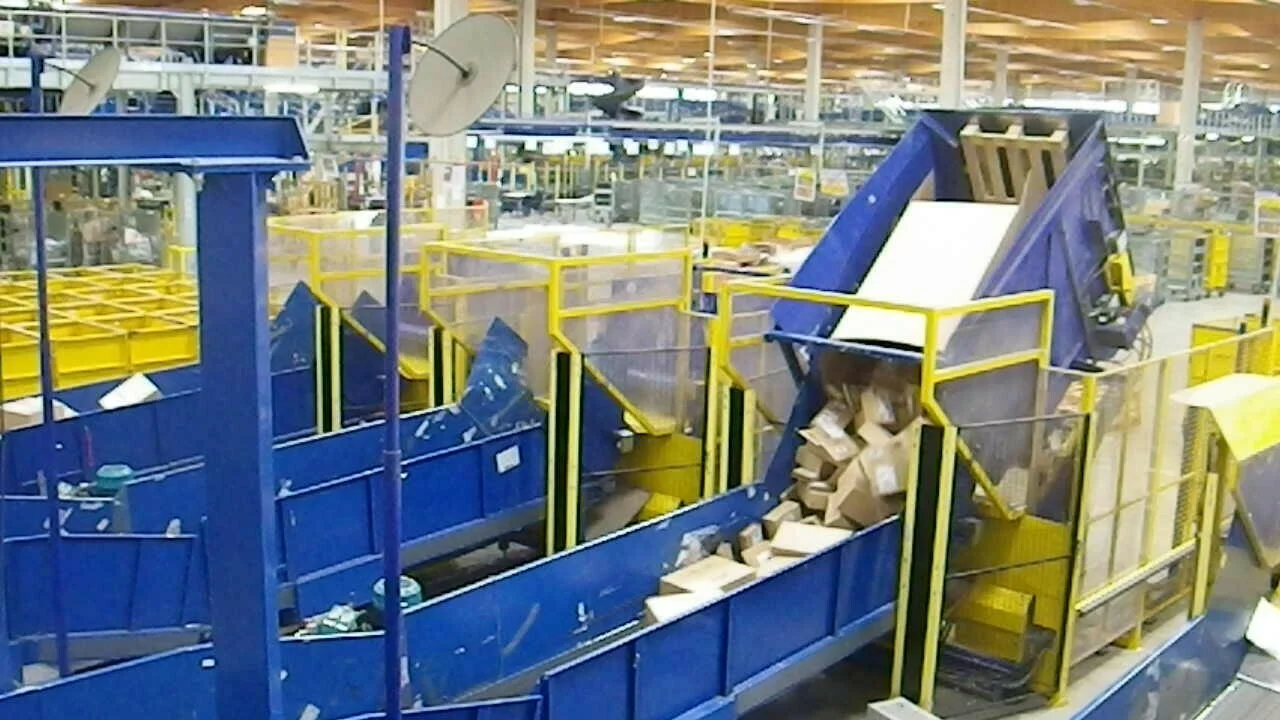

After inserting the container, the tipper the holder and the tilt. the packages fall gently on the cover conveyor and are evacuated on a singulation conveyor.
U-FLEX technical features
U-FLEX specifications
- Nominal throughput : 30s / cycle
- Locking system : variable pressure clamping jaws, pallet support pins
- Rated Power : 11 kW
- Energy : hydraulic
Unit Load Device (ULD)
- Length : 600mm min to 1250mm max
- Width : 700mm min to 1000 mm max
- Height : 500mm min to 2000mm max
- Max laod : 600kg
Combined equipment and services
- ULD conveyors
- Peripheral protection
- Parcel singulation system
- On site / remote / video maintenance
